ASUS TUF GAMING B860M-PLUS

• mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 4 x DIMM slots, max. 192GB, DDR5 - Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

• Dvoukanálová paměťová architektura
• Osazení DIMM
• Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III(AEMPIII)

Grafické porty:

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Rozšiřující sloty:
Intel® Core™ Ultra Processors(series 2)

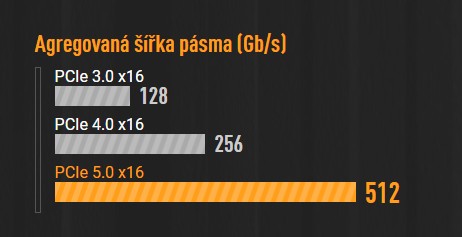

• 1 x PCIe 5.0 x16 slot

Intel® B860 Chipset

• 1 x PCIe 4.0 x4 slot

Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors(series 2)

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

USB:
Zadní USB (Total 7 ports)

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 2 x USB 10Gbps ports (2 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)

Přední USB (Total 7 ports)

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 headers support 2 additional USB 2.0 ports

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Features

• Audio Shielding
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers

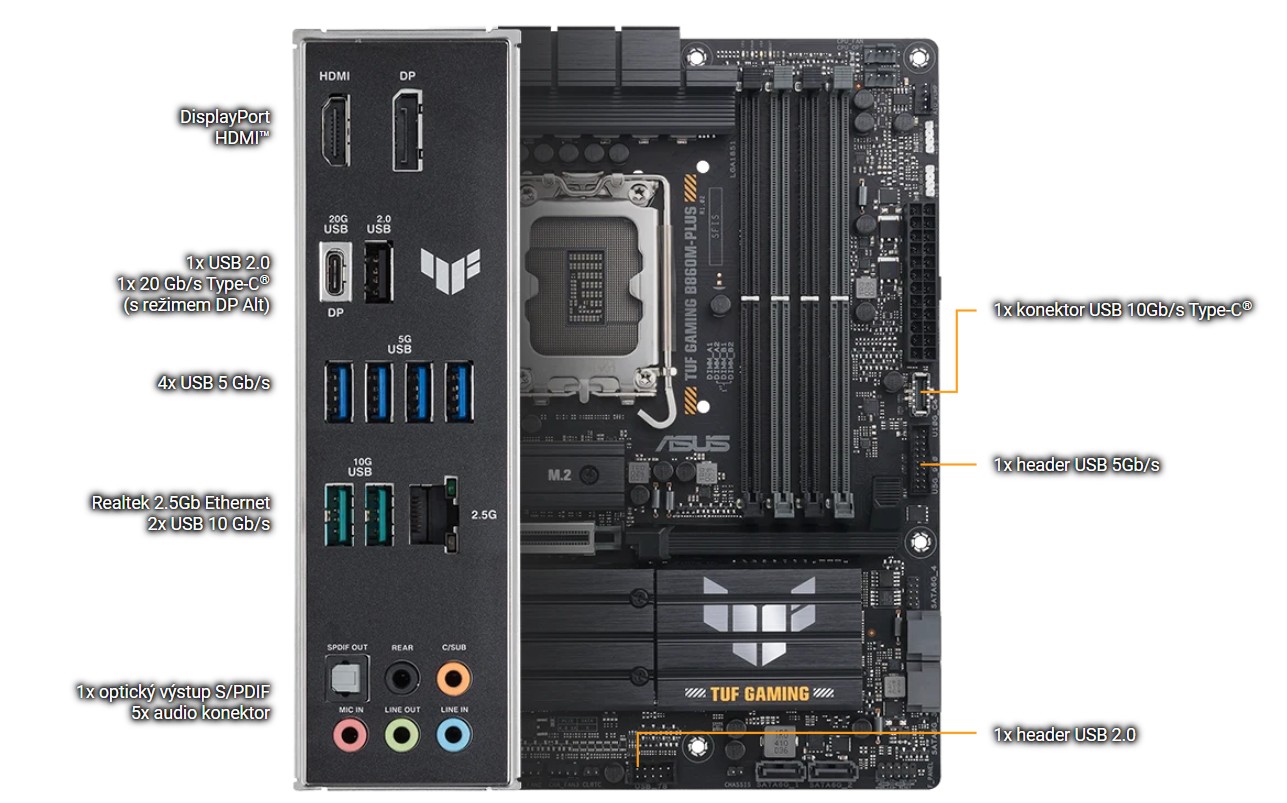

Vstupy/výstupy zadního panelu:

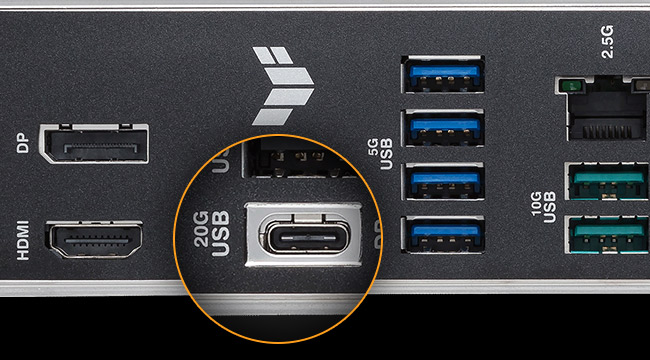

• 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
• 2 x USB 10Gbps ports (2 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Interní vstupy/výstupy:
Ventilátory a chlazení:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers

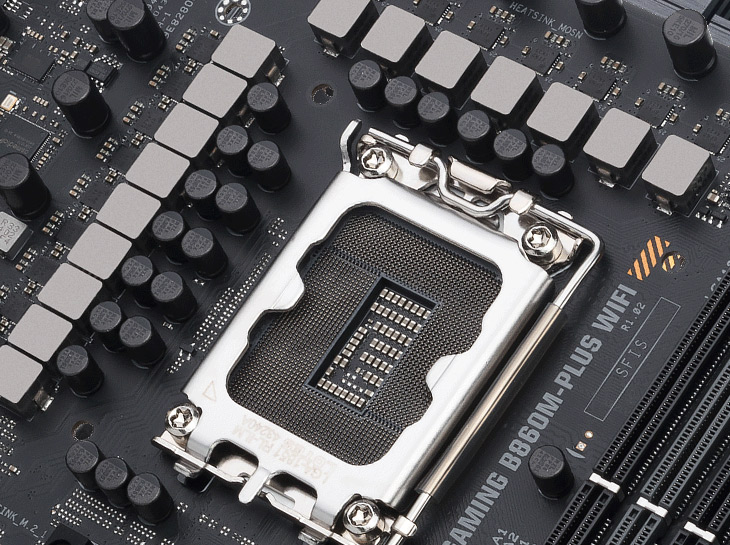

Napájení:

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors

Úložiště:

• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

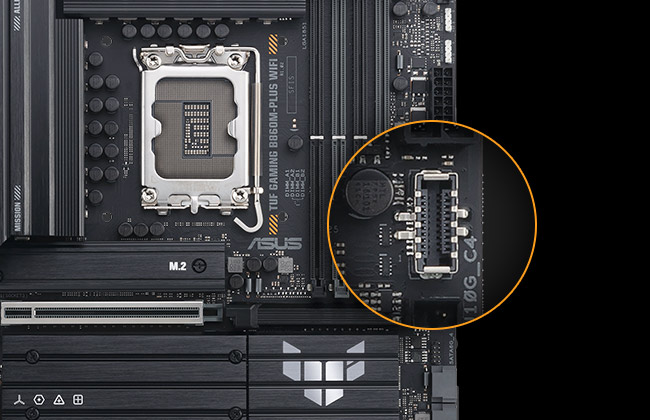

• 1 x USB 10Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Různé:

• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x Front panel audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thunderbolt™ (USB4®) header

Příslušenství:
Kabely:

• 2 x SATA 6Gb/s cables

Různé:

• 2 x M.2 Rubber Packages
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD

Dokumenty:

• 1 x Quick start guide
