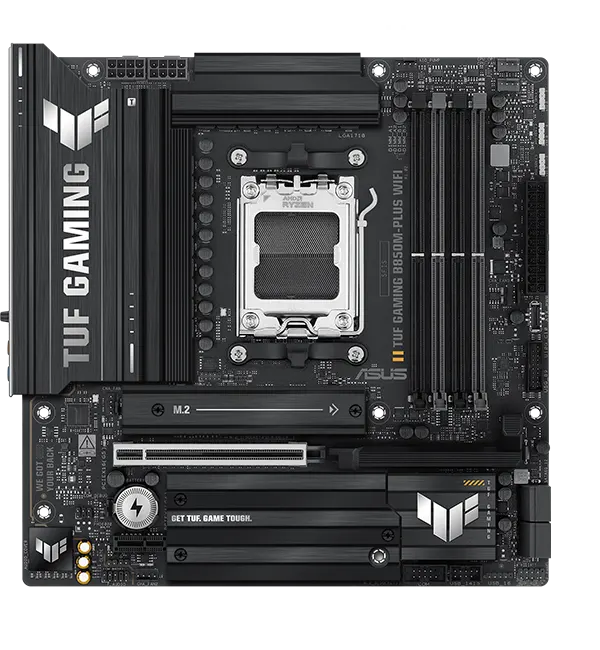

ASUS TUF GAMING B850M-PLUS WIFI

• mATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850 Chipset

Paměť:

• 4 x DIMM slots, max. 192GB, DDR5 - Podpora až 8000+MT/s (OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a *Non-ECC Un-buffered DIMM
• Dvoukanálová paměťová architektura
• Podpora rozšířených profilů AMD pro přetaktování (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Grafické porty:

• 1 x DisplayPort
• 1 x HDMI™ port

Rozšiřující sloty:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B850 Chipset

• 1 x PCIe 4.0 x1 slot

Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)

AMD B850 Chipset

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

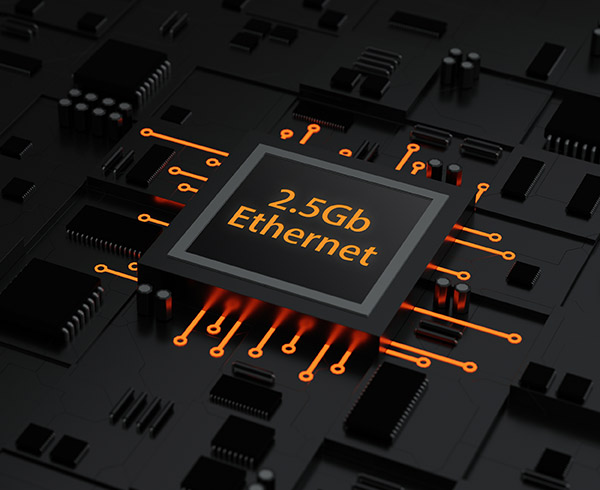

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Připojení a Bluetooth:

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth® v5.3**

USB:
Zadní USB (Total 12 ports)

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

Přední USB (Total 6 ports)

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio:

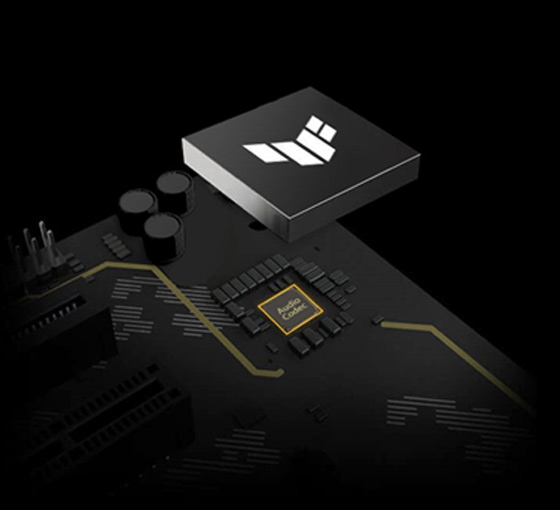

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

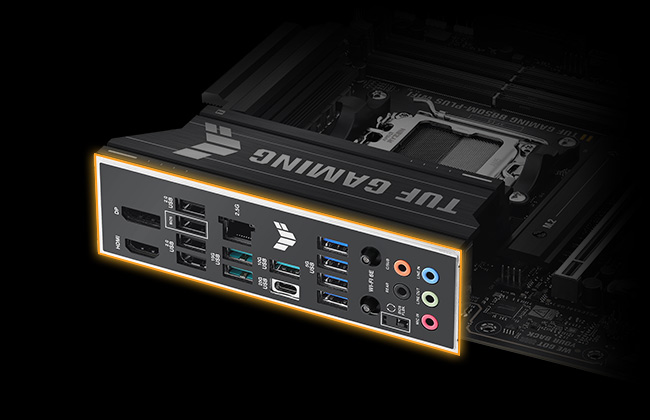

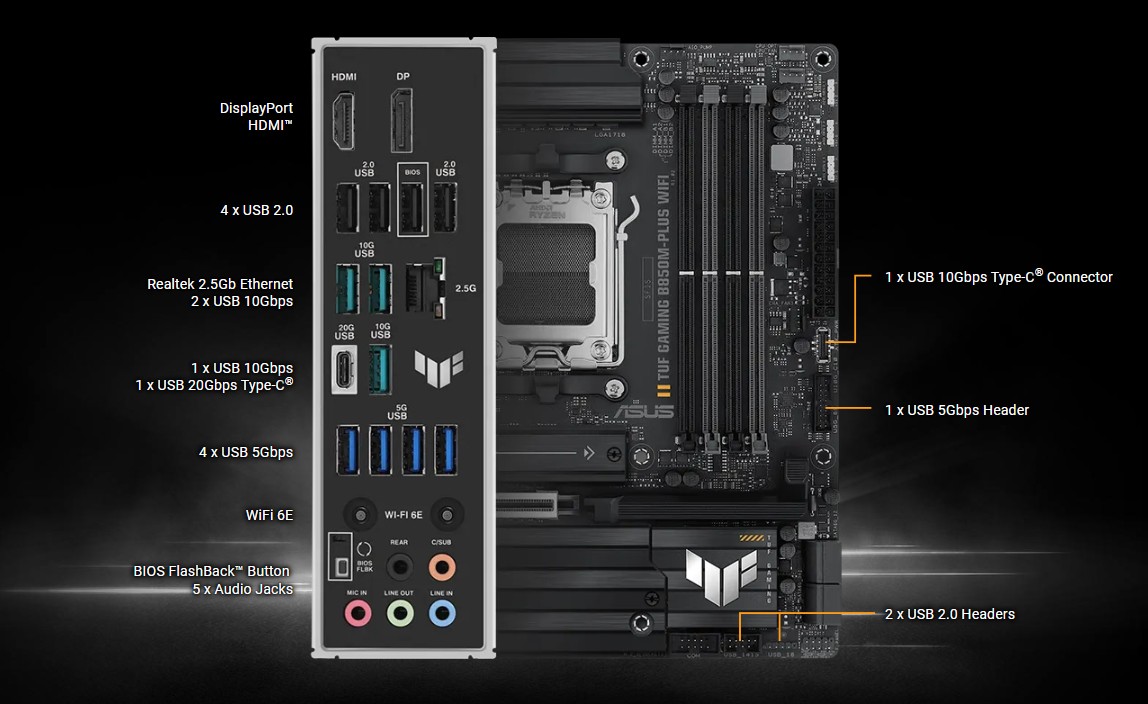

Vstupy/výstupy zadního panelu:

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks

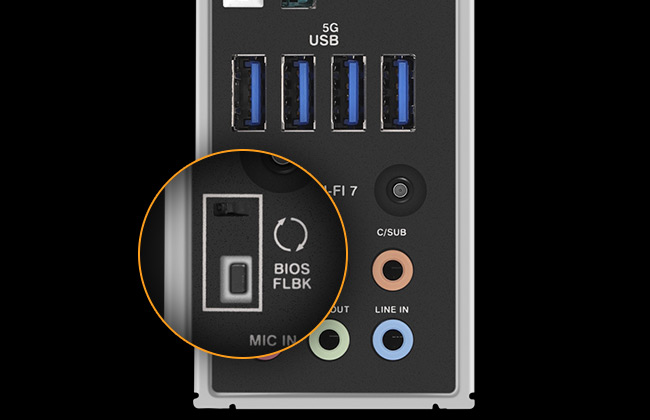

• 1 x BIOS FlashBack™ button

Interní vstupy/výstupy:
Ventilátory a chlazení:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers

Napájení:

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors

Úložiště:

• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

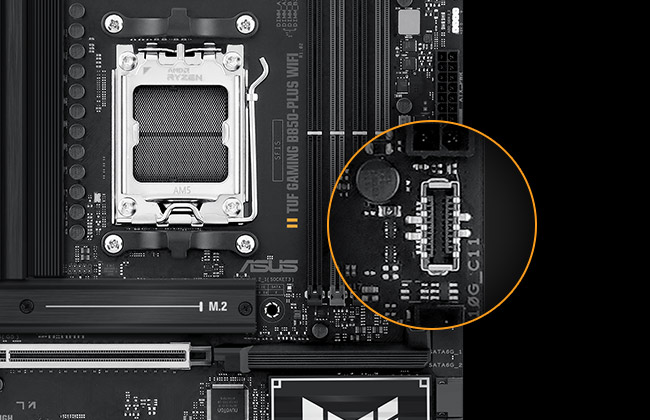

• 1 x USB 10Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Různé:

• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header

Příslušenství:
Kabely:

• 2 x SATA 6Gb/s cables

Různé:

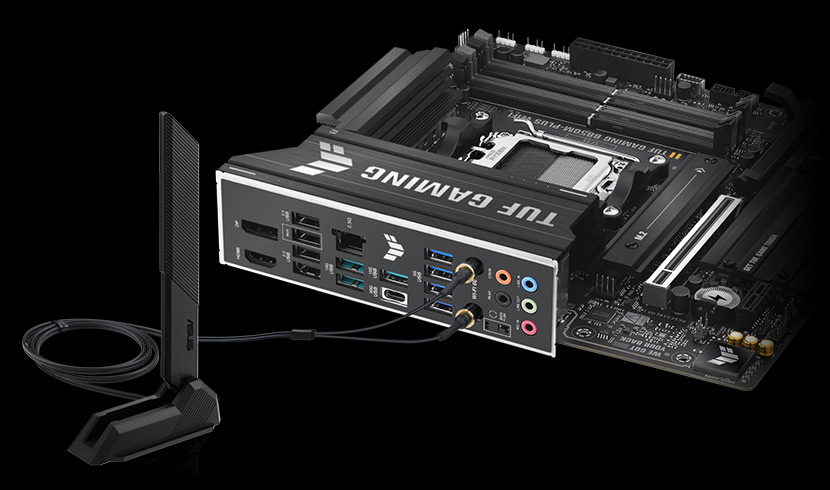

• 1 x ASUS WiFi Q-Antenna
• 1 x TUF GAMING sticker
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD

Dokumenty:

• 1 x Quick start guide
