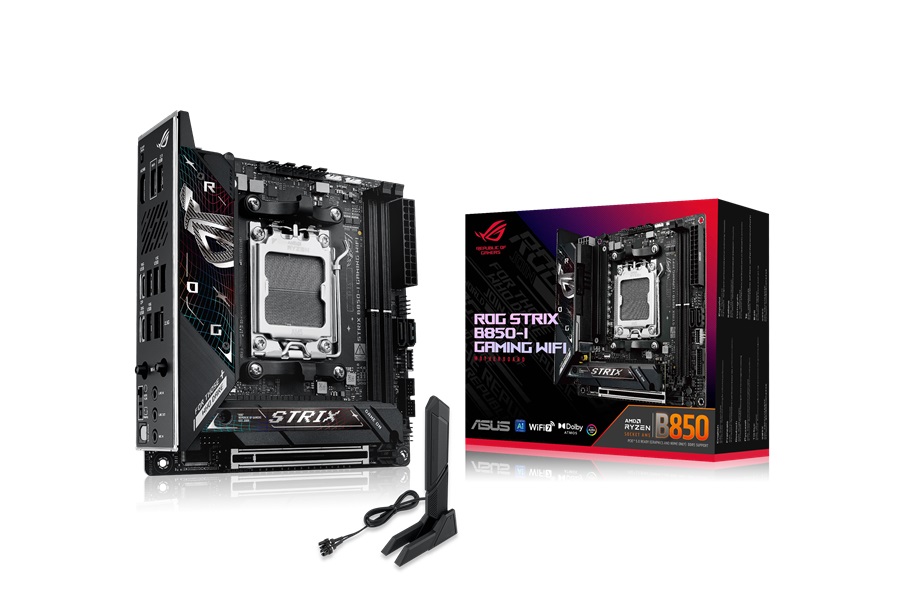

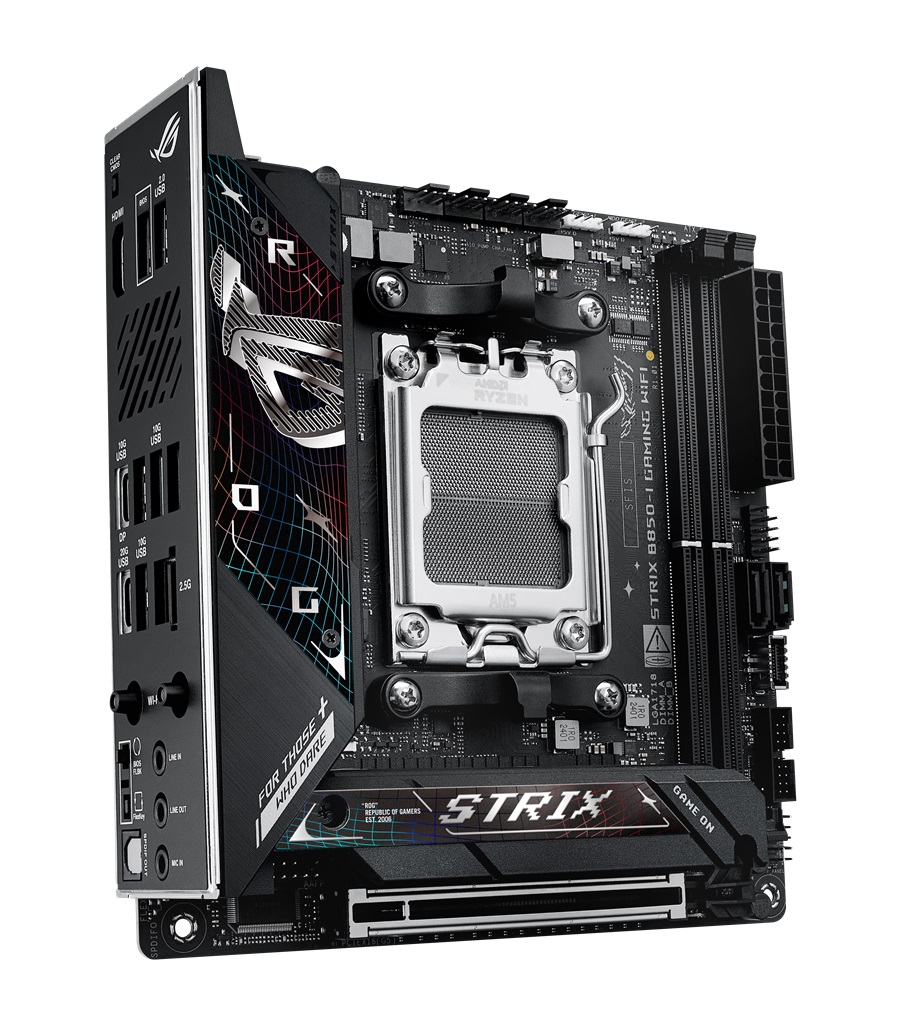

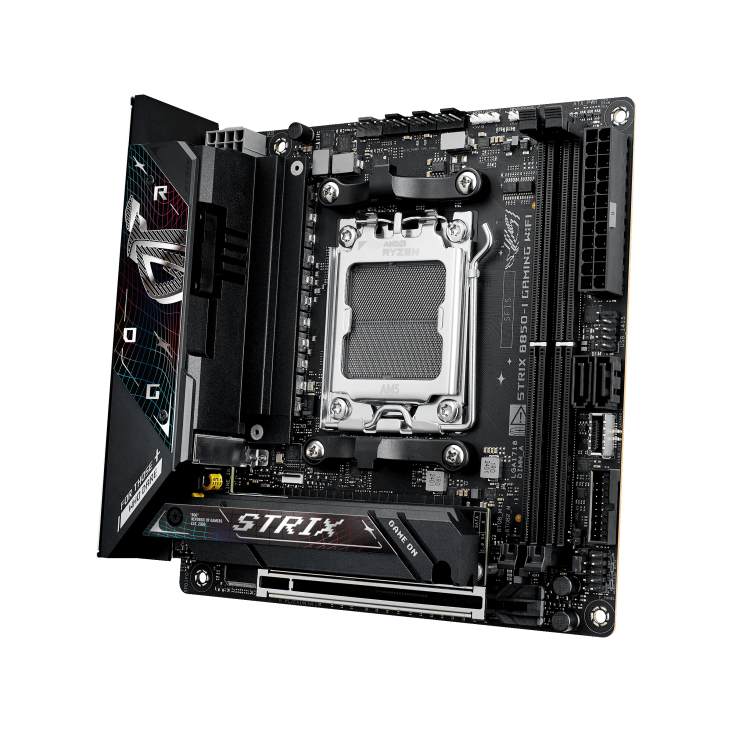

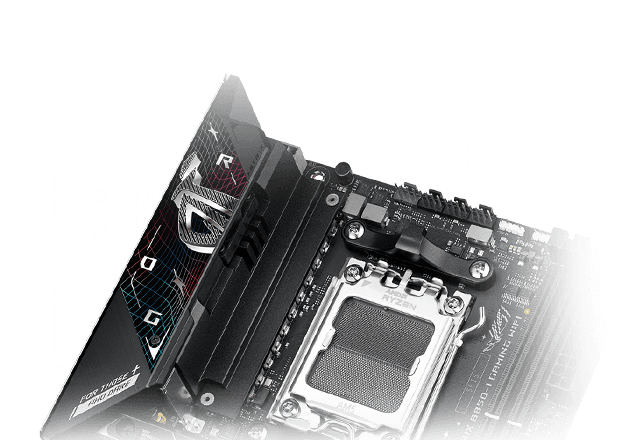

ASUS ROG STRIX B850-I GAMING WIFI

• ATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850

Paměť:

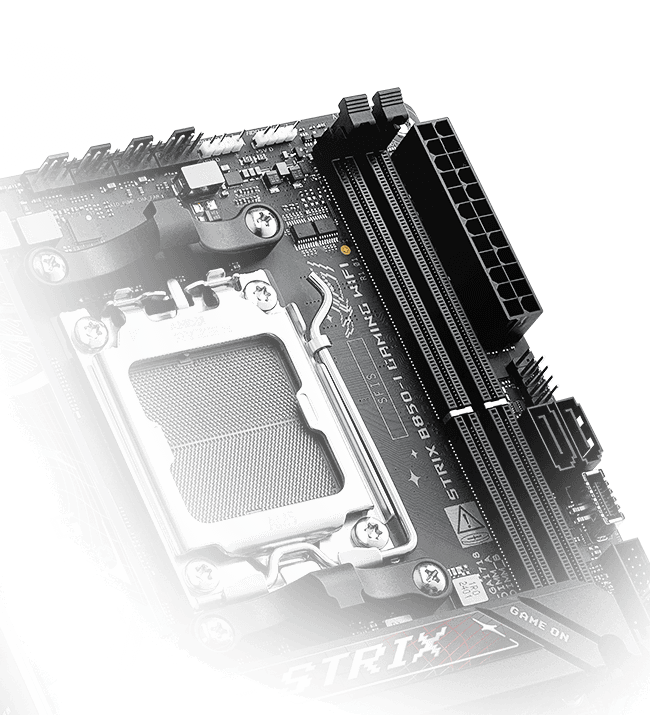

• 2 x DIMM slot, max 96GB, DDR5
• Dvoukanálová paměťová architektura
• Podpora rozšířených profilů AMD pro přetaktování (EXPO™)
• Podpora modulů DIMM Flex
• Rozšířený profil paměti ASUS (AEMP)
• ECC a Non-ECC Un-buffered DIMM

Grafické porty:

• 1 x HDMI™ port
• 1 x USB 10Gbps ports support USB Type-C® display outputs

Rozšiřující sloty:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot(s)

AMD Ryzen™ 8000 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slot(s)

Úložný prostor:
Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors

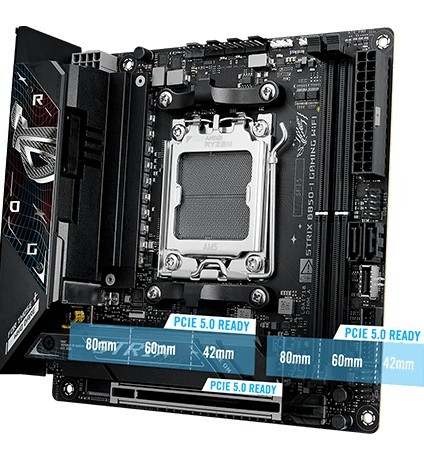

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Ethernet:

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Připojení a Bluetooth:

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4***

USB:
Zadní USB (Total 8 ports)

• 1 x USB 20Gbps port(s) (1 x USB Type-C®)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
• 2 x USB 2.0 port(s) (2 x Type-A)

Přední USB (Total 5 ports)

• 1 x USB 10Gbps
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A

Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Unique de-pop circuit
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

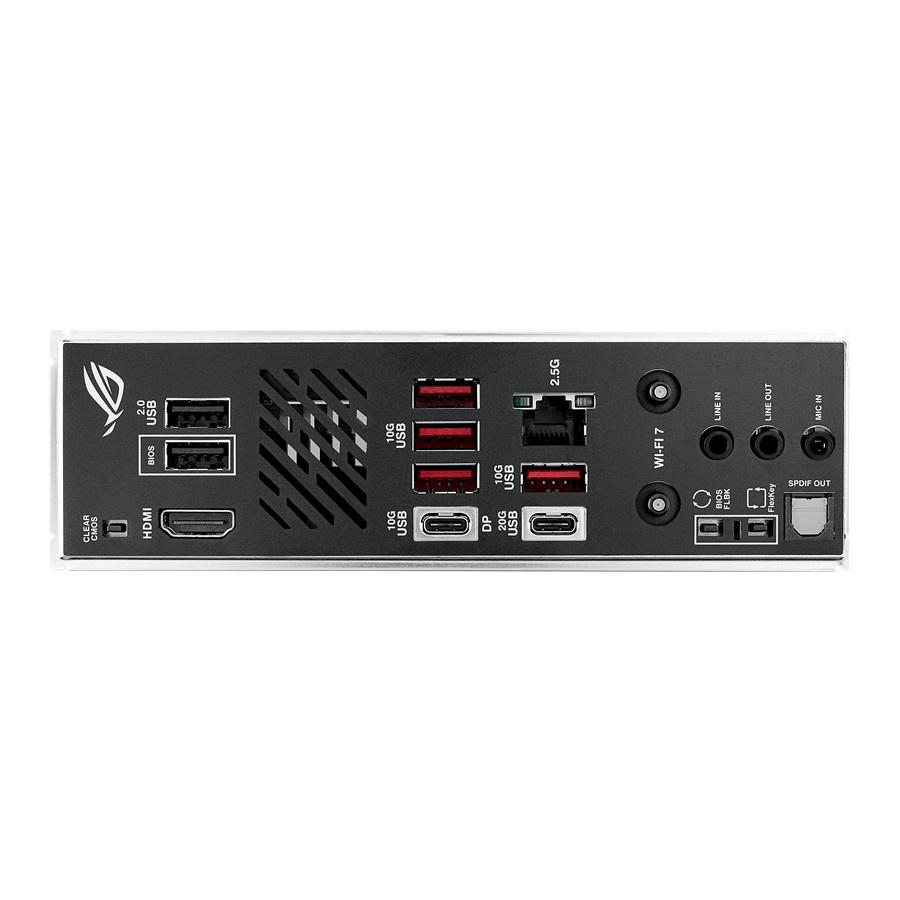

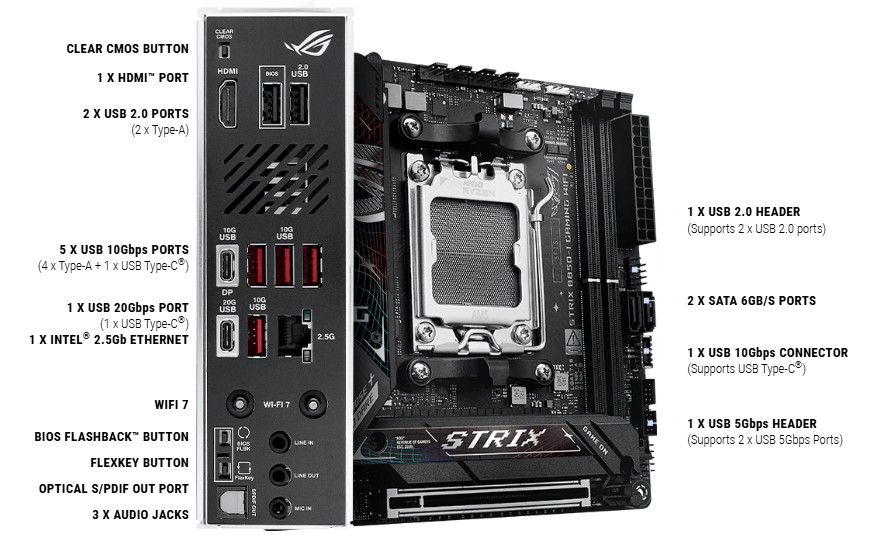

Vstupy/výstupy zadního panelu:

• 1 x USB 20Gbps port(s)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
• 2 x USB 2.0 port(s) (2 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• 1 x FlexKey button

Interní vstupy/výstupy:
Ventilátory a chlazení:

• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 1 x 4-pin Chassis Fan header(s)
• 1 x Extra Flow Fan header(s)

Napájení:

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector

Úložiště:

• 2 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports

USB:

• 1 x USB 10Gbps connector (support(s) USB Type-C® )
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Různé:

• 2 x Addressable Gen 2 header(s)
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

Příslušenství:
Kabely:

• 1 x Panel cable
• 1 x ROG USB2.0 splitter cable
• 2 x SATA 6Gb/s cables

Různé:

• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 backplate Q-Latch package(s)
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x M.2 backplate rubber package(s)
• 1 x Screw package(s) for M.2 SSD

Dokumenty:

• 1 x Quick start guide
