ASUS ROG STRIX B850-A GAMING WIFI

• ATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850 Chipset

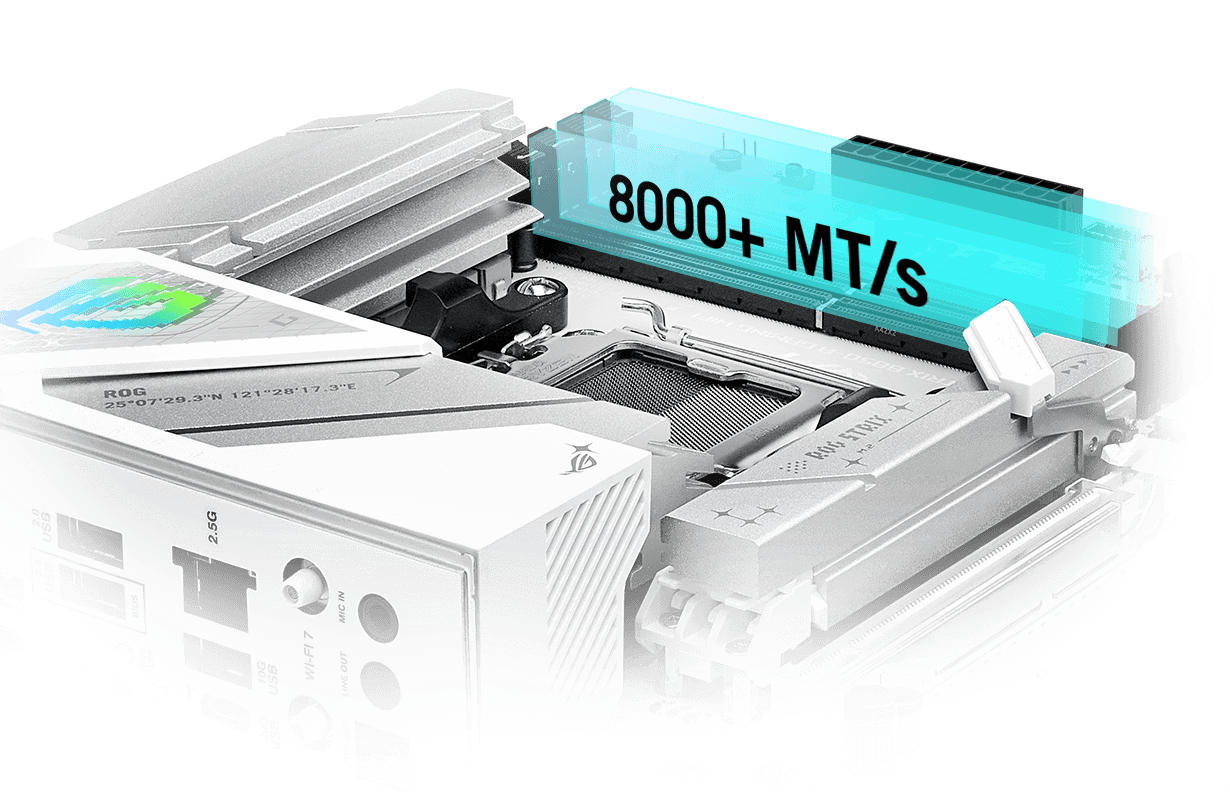

Paměť: 4 x DIMM slots, max. 192GB, DDR5

• Podporuje až 8000+MT/s(OC) s procesory Ryzen™ řady 9000 a 8000 a 7000 ECC a Non-ECC, nevyrovnaný modul DIMM

Grafické porty:
1 x DisplayPort
1 x HDMI™ port

Rozšiřující sloty:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• 1 x PCIe 5.0 x16 slot with Q-Release Slim

AMD Ryzen™ 8000 Series Desktop Processors

• 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode)

AMD B850 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Úložný prostor:

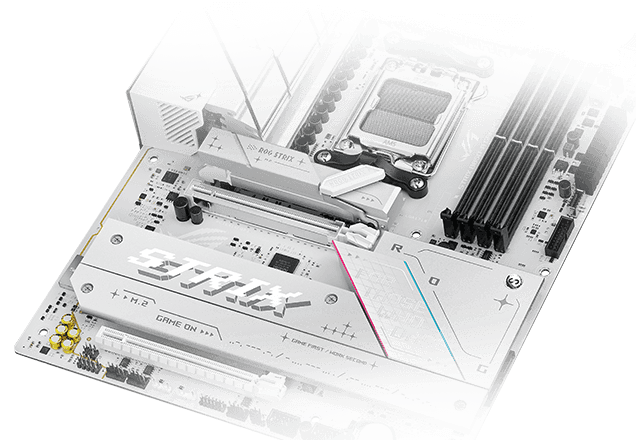

Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 & 9000 Series Desktop Processors

• M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
• M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
• M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)**

AMD B850 Chipset

• M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)***
• M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
• 2 x SATA 6Gb/s ports

Ethernet:

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Připojení a bluetooth:

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4***

USB:
Zadní USB (Celkově 10 portů)

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (4 x Type-A)

Přední USB (Celkově 7 portů)

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

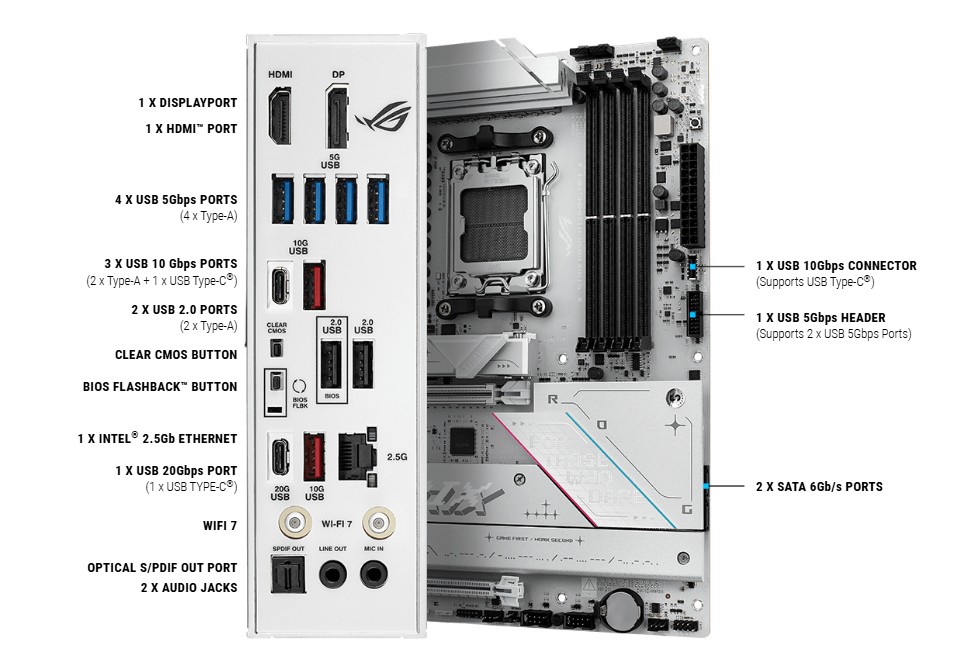

Vstupy/výstupy zadního panelu:

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Interní vstupy/výstupy:

Ventilátory a chlazení:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers

Napájení:

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector

Úložiště:

• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports

USB:

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:

• 3 x Addressable Gen 2 headers
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Power button
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

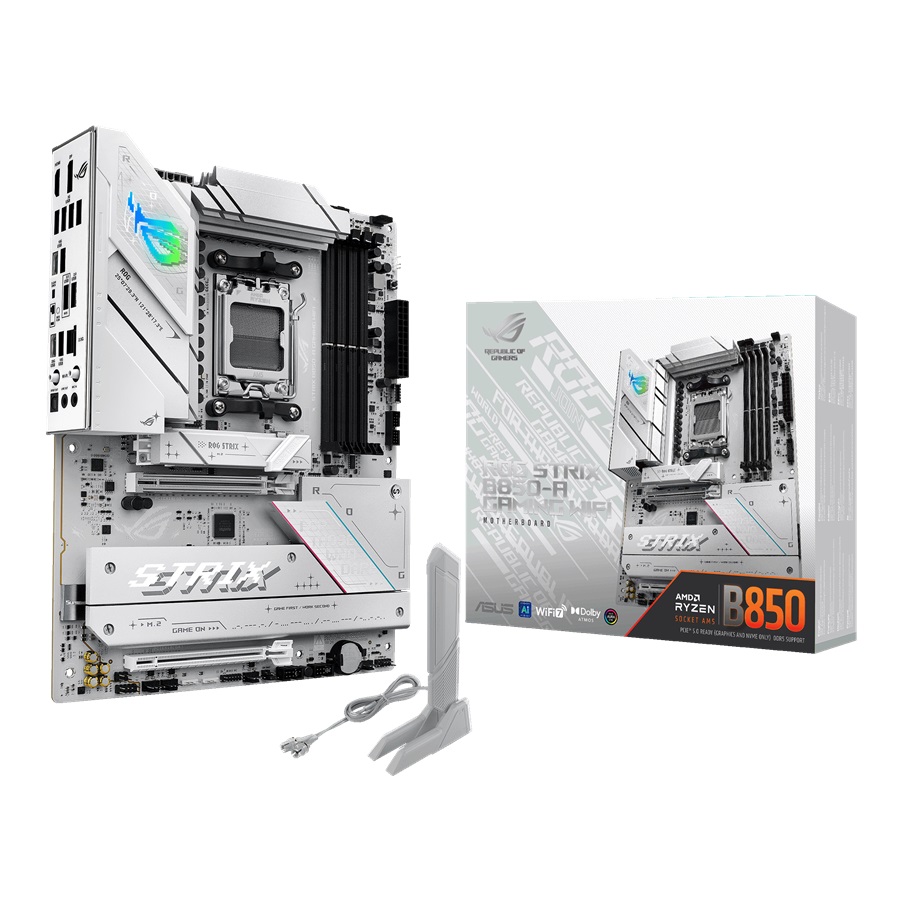

Příslušenství:
Kabely:

• 2 x SATA 6Gb/s cables

Různé:

• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubbers

Instalační média:

• 1 x USB drive with utilities and drivers

Dokumenty:

• 1 x Quick start guide
